APPLICATION

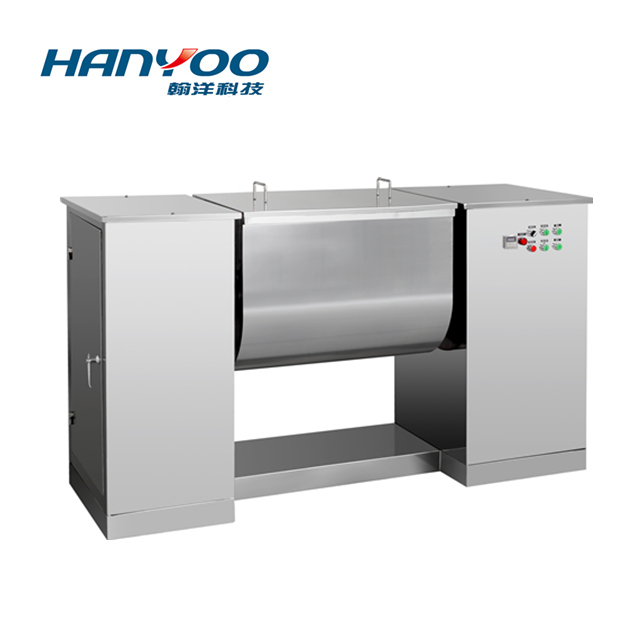

This machine is mainly used for the uniform mixing of different proportions of dry or wet powdery materials in the pharmaceutical industry,and does not produce dissolution or volatilization of the materials during the mixing process.
MACHINE FEATURES
This machine is suitable for mixing different main and auxiliary materials in chemical, food and other industrial sectors,It is suitable for mixing semi-solid machine,It is a whole machine base., The transmission system is running smoothly, the mixing slurry and material contact are all made of stainless steel. It has good corrosion resistance and can maintain the quality of the mixture, so that it does not pollute or discolor. The transmission mechanism mainly adopts worm gear, worm and gear transmission.It has no excessive noise when used, and has sufficient oil storage capacity to get good lubrication and improve the service life of the machine, The machine is controlled by electric equipment and is easy to operate.It uses jog and dumping to reduce the labor intensity of the operator.
TECHNICAL PARAMETER
Model | CH-10 | CH-20 | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 |
Working volume（L） | 10 | 20 | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
Pulp shaft speed（r/min） | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 22 |
Main motor power（kw） | 0.55 | 0.55 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
Reverse motor power（kw） | 0.75 | 0.75 | 0.75 | 0.72 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
Dimension（mm） | 600×280×500 | 750×380×610 | 980×425×820 | 1280×440×900 | 1590×660×1075 | 1590×660×1125 | 1890×700×1235 | 2140×705×1040 | 2435×900×1385 |
Machine weight（kg） | 40 | 71 | 220 | 250 | 550 | 600 | 920 | 920 | 1320 |
