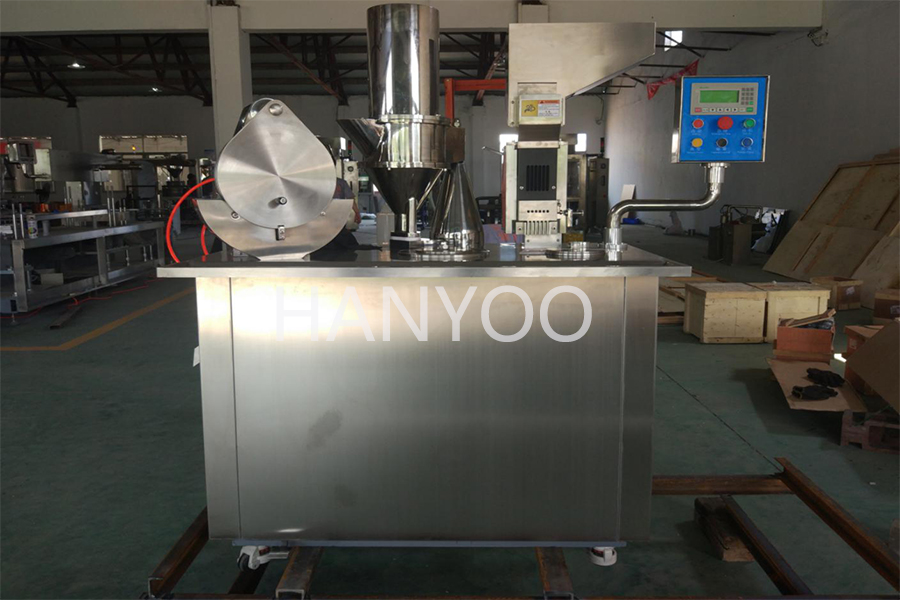

Installation and wire connection of semi-automatic capsule filling machine

Installation and wire connection of semi-automatic capsule filling machine

1. Ground requirements
The rack should be installed on the ground with a sufficient rated level. If it is installed on the floor upstairs, ensure that the support is not less than 1000 kg/m, with a rubber cushion at the bottom, and the level is the same as the level of the machine table of the ordinary school.
2. Vacuum oil
Any vacuum pump sent at random is not lubricated, and the oil-free vacuum pump may run for a short time (less than 10 minutes). Before production, be sure to raise one liter of #100 special vacuum pump oil. After 1500 hours of use, the vacuum pump oil should be replaced, otherwise the damage will not be free of warranty.
3. Air demand
Vacuum: The vacuum pump is connected to the vacuum cylinder, the inner diameter is 25mm, the wire end of the hose is connected to the vacuum cylinder, and the other side is connected to the vacuum nozzle of the machine.
Air compressor: Turn on the air compressor. The air compressor is connected to one end of the pipe, and the other side is connected to the air nozzle of the machine.
4. Voltage and power
Before connecting, make sure that the power supply voltage and hz are the same as the machine. The power cord of the vacuum pump is connected to the socket on the side of the machine (the vacuum pump is a three-core aviation socket), the other four-core air plug is inserted into the side of the socket of the machine, and the other end is connected to the power supply.
5. Machine cleaning
To prevent contamination of powder or capsules. Please use alcohol to carefully clean all parts in direct contact with the medicine.
