The forming device of blister packing machine

The forming device of blister packing machine

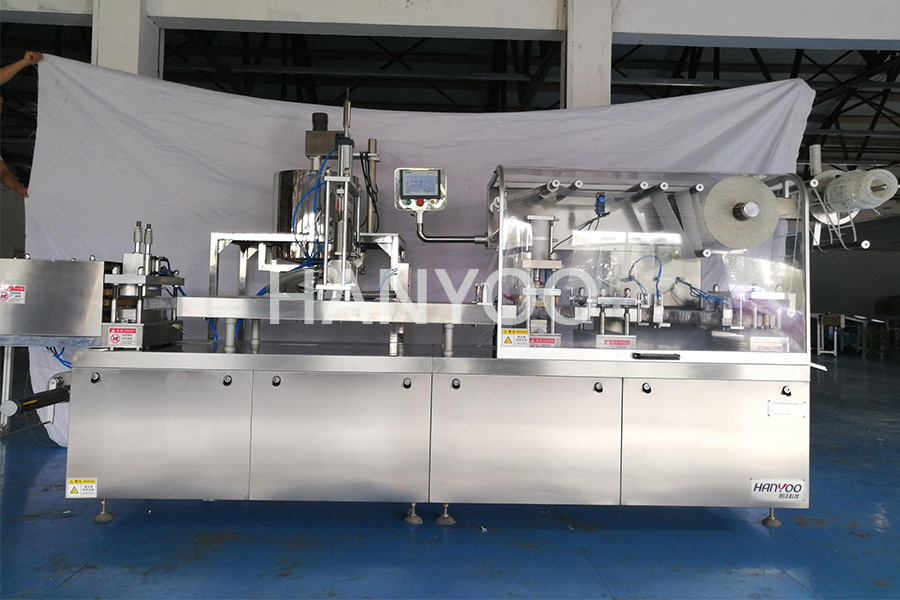

Aluminum-plastic bubble cap packing machine is specially designed and produced for small pharmaceutical factories, health products factories, food factories, hospital preparation rooms and other packaging machinery, mainly used for packaging capsules, tablets, rubber pills, suppositories, milk tablets, candy, hardware and other solid medicine and food.

The packing machine mainly includes the body, the unwinding mechanism, the heating device, the packaging material forming device, the heat sealing device, the punching device and the finished product output device, among which the forming device is one of the more important core mechanisms. The forming device of the existing blister packaging machine mainly comprises the mounting frame, column, upper die seat and lower die seat, the lower die seat is sliding arranged on the column, the upper die seat is fixed on the upper end of the column, the lower die seat is provided with a concave die, the upper die seat is provided with a punch, and the mounting frame is respectively provided with the upper die driving cylinder and lower die driving cylinder, The upper die driving cylinder and the lower die driving cylinder are respectively connected with the upper die seat and the lower die seat. The forming mechanism adopts the cylinder to drive the upper die seat and the lower die seat to move toward each other to achieve the forming, the forming speed is fast and the working efficiency is high; And need to set the solenoid valve and controller to accurately control the action of the two cylinders, the control system is easy to understand, simple operation.
