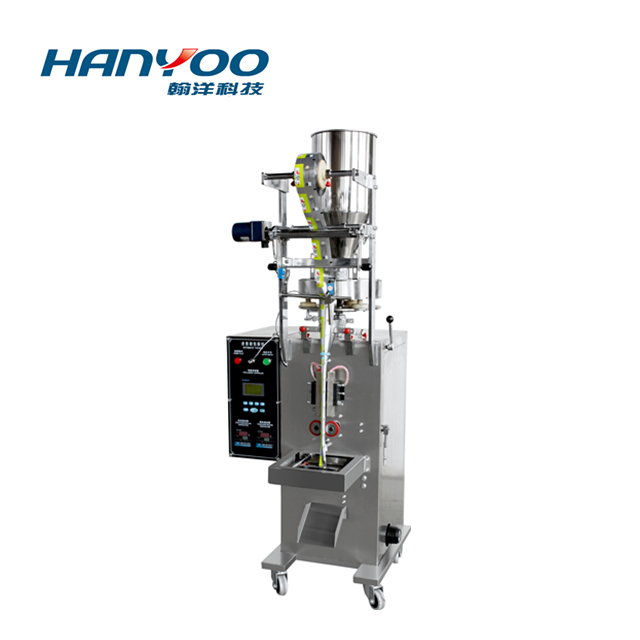

DXD-100/500/800K
HANYOO
APPLICATION
The machine is suitable for packing non sticky, bulk or granular material, such as medical pills, tea, food Stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE,NYLON etc.
MACHINE FEATURES
● The machine used good quality SS304 stainless steel cover meets to GMP standard.
● Equipped with antipollution and dust proof device.
● Automatic adjustment of pouch size and filling range.
● Photocell controller is easy to manipulate.
● The horizontal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
TECHNICAL PARAMETER
Model | DXD-100K | DXD-500K | DXD-800K |
Bag size(mm) | L50-170 W30-120 | L50-200 W50-150 | L50-200 W50-150 |
Capacity(bag/min) | 30-60 | 30-60 | 20-50 |
Filling range(ml/g) | 5-100 | 100-500 | 100-800 |
Power(kw) | 220V 50HZ 1.5KW | 220V 50HZ 1.8KW | 220V 50HZ 1.8KW |
Weight(kg) | 300 | 350 | 400 |
Dimension(mm) | 600×790×1850 | 1300×930×1850 | 1300×1080×2100 |
APPLICATION
The machine is suitable for packing non sticky, bulk or granular material, such as medical pills, tea, food Stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE,NYLON etc.
MACHINE FEATURES
● The machine used good quality SS304 stainless steel cover meets to GMP standard.
● Equipped with antipollution and dust proof device.
● Automatic adjustment of pouch size and filling range.
● Photocell controller is easy to manipulate.
● The horizontal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
TECHNICAL PARAMETER
Model | DXD-100K | DXD-500K | DXD-800K |
Bag size(mm) | L50-170 W30-120 | L50-200 W50-150 | L50-200 W50-150 |
Capacity(bag/min) | 30-60 | 30-60 | 20-50 |
Filling range(ml/g) | 5-100 | 100-500 | 100-800 |
Power(kw) | 220V 50HZ 1.5KW | 220V 50HZ 1.8KW | 220V 50HZ 1.8KW |
Weight(kg) | 300 | 350 | 400 |
Dimension(mm) | 600×790×1850 | 1300×930×1850 | 1300×1080×2100 |
