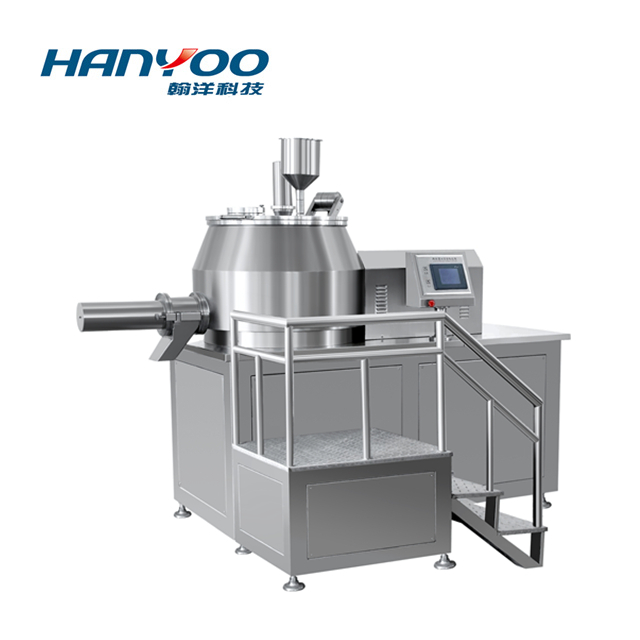

GHL
HANYOO
APPLICATION
This machine is widely used in pharmaceutical, food, chemical and light industries.etc, to blend powdery materials and granulate. The blending and granulating
procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle,and are fully mixed. After pouring in adhesives the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
TECHNICAL PARAMETER
Model | GHL-10 | GHL-50 | GHL-100 | GHL-200 | GHL-300 | GHL-400 | GHL-600 | |
Volume（L） | 10 | 50 | 100 | 200 | 300 | 400 | 600 | |
Working volume（L） | 2-6 | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-420 | |
Loading capacity（kg） | 1-3 | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-210 | |
Max inside diameter（mm） | 300 | 498 | 628 | 788 | 988 | 988 | 1150 | |
Rotational speed of stirring paddle（rpm） | 50-500 | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-150 | |
Stirring motor（kw） | 2.2 | 5.5 | 7.5 | 15 | 22 | 22 | 30 | |
Rotational speed of cutter（mm） | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 | 50-3000 | |
Cutting power（kw） | 0.75 | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 | |
Discharge in front | length（mm） | / | / | / | 2500 | 2700 | 2700 | / |
width（mm） | / | / | / | 1400 | 1760 | 1760 | / | |
Discharge in left | length（mm） | 1500 | 2100 | 2400 | 2250 | 2500 | 2500 | 2900 |
width（mm） | 570 | 780 | 900 | 1700 | 1960 | 1960 | 2330 | |
Height of discharge outlet（mm） | 700 | 725 | 750 | 930 | 930 | 930 | 1150 | |
Height（mm） | 1350 | 1500 | 1700 | 2100 | 2220 | 2320 | 2600 | |
Weight（kg） | 260 | 420 | 760 | 1200 | 1600 | 1650 | 3000 | |
