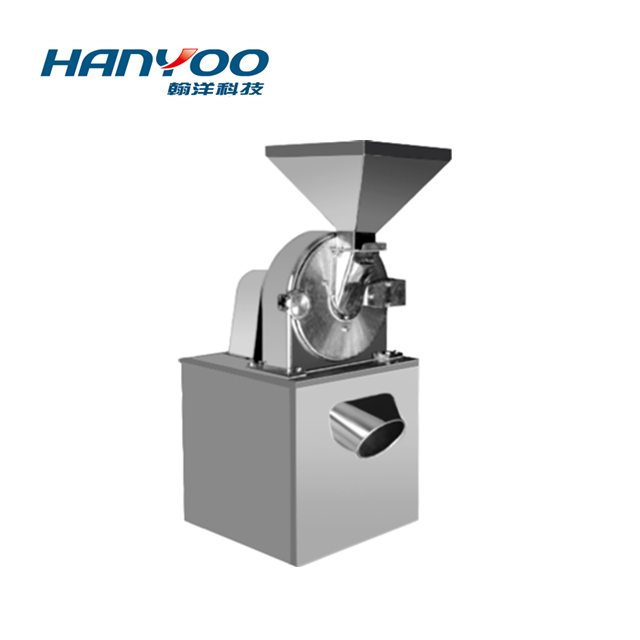

SF
HANYOO
MAIN PURPOSE
The machine is applied to such industries as pharmacy, chemical industry,pesticide, food and grain.
MAIN FEATURE
The machine makes use of the high-speed relative movement between the moveable and fixed gear plates, so as to make the materials crushed under the impact and friction of gear, as well as impacts between materials. The machine characterized by simple and solid structure, smooth operation and good crushing effect. Materials to be crushed can be discharged from the grinding cavity of the main machine.The granule size can be obtained by changing mesh screens with different bore diameters .Besides, the machine is fully made of stainless steel .The internal walls of the casing are subject to mechanical machining to achieve smooth surfaces,changing roughness and residual powders of inner walls in previous models of machines. It can make the poduction of medicine ,food and chemical products meet national standards and GMP requirements.
TECHNICAL PARAMETER
Model | SF-100 | SF-130 | SF-180 |
Production capacity(kg/h) | 1-2 | 2-5 | 10-20 |
Spindle rotation speed(r/min) | 8000 | 7000 | 4000 |
Charging granularity(mm) | 5×5×5 | 5×5×5 | 8×8×8 |
Crushing fineness(mesh) | 10-120 | 10-120 | 10-120 |
Motor power(kw) | 0.75 | 1.1 | 2.2 |
Overall dimensions(mm) | 270×540×480 | 520×360×820 | 420×600×1000 |
