THP
HANYOO
APPLICATION

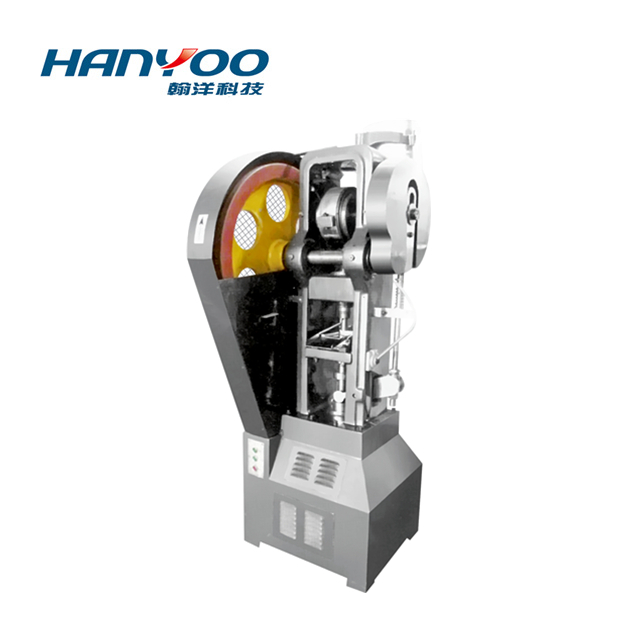

The machine is a flower basket type continuous automatic tablet press.It is one of the fundamental equipment tor pressing granular raw materials into tablets in such industries as medicine, chemical industry, food and electronics. It is suitable for making medicine tablets, accelerants ,sugar tablets, calcium tablets, coffee tablets,powder metallurgy, electronic parts and all kinds of fertilizer and pesticide tablets in small batch production, laboratories, hospitals and other sectors.It can be used to make various special-shaped and ring-shaped tablets,as well as tablets with trademarks, words and simple images carved on both sides. Thanks to its high pressure and high strength, it is especially suitable for making powder tablets difficult to form,such as ceramic powder, metal powder, etc.
TECHNICAL PARAMETER
Model | THP-15 | THP-20 | THP-25 | THP-30 | THP-45 |
Working Pressure（KN） | 150 | 200 | 250 | 300 | 450 |
Upper punch max. travel（mm） | 110 | 110 | 120 | 130 | 140 |
Loading height（mm） | 70 | 80 | 90 | 100 | 120 |
Lower mold diameter（mm） | 115 | 115 | 130 | 140 | 100 |
Max. Tablet diameter（mm） | 55 | 65 | 80 | 85 | 90 |
Production times（Times/min） | 20-40 | 20-35 | 15-35 | 15-32 | 12-25 |
Motor power（kw） | 3 | 4 | 4 | 5 | 6 |
Overall size（mm） | 2120×980×960 | 2100×1000×1050 | 2180×1020×1080 | 2240×1100×1040 | 2330×1165×1080 |
Machine Weight（Kg） | 1100 | ||||
