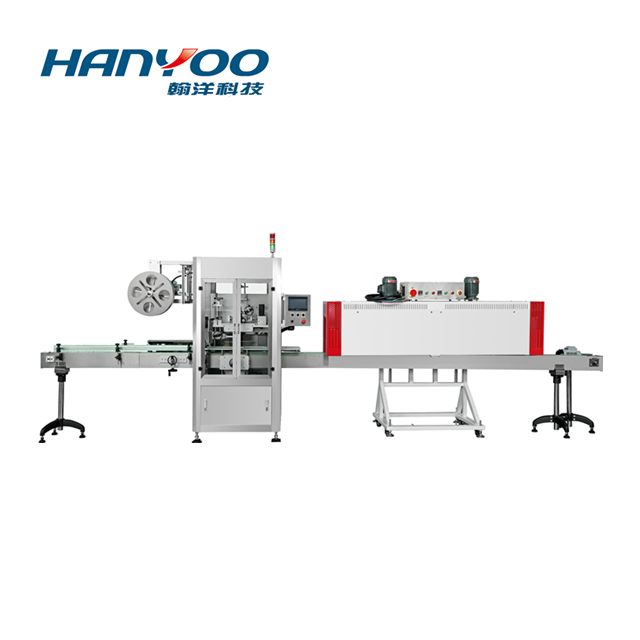

TS-200P
HANYOO
MACHINE FEATURES
● Synchronous mechanism transmission, any transmission belt replacement can be completed quickly. Compared with the traditional multi-layer arm type, the maintenance is easy and simple.
● The unique cutter holder design is suitable for 30mm~100mm containers. The cutter holder is completely free of replacement and debugging.
● Single shrink label feeding tray design, easy to install labels;Automatic calculation, free setting, no adjustment, label can be automatically detected and automatically positioned.
● Feeding mechanism power synchronous tension control supply label, supply capacity of 180 m/min, label supply tray diameter is 500mm. paper tube inner diameter is 4',8', 10'.
● The new cutter design is driven by servo motor. It has high speed, stable and accurate movement, smooth ct and beautiful shrinkage.It is equipped with the synchronous positioning mechanism of the label, and the positioning accuracy of the slit is up to 1mm.
TECHNICAL PARAMETER
Model | TS-200P |
Output capacity（bottles/min） | 50-120 |
Bottle diameter（mm） | Φ30-Φ100 |
Label length（mm） | 30-220 |
Label thickness（mm） | 0.03-0.13（PE/PVC） |
Voltage | Customized |
Power(kw) | 11 |
Weight(kg) | 1030 |
Dimension（mm） | 5000×900×2100 |
