DZL-270
HANYOO
APPLICATION

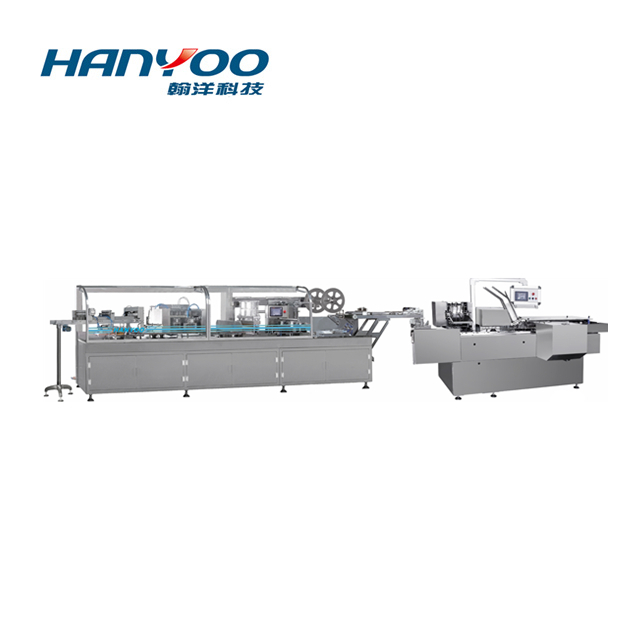

This machine is designed for automatic medicine packaging production line. It can automatically blistering, flow packaging, cartoning, coding, ejection, etc. The machine is controlled by PLC and touch screen, which increased the working efficiency and stability. The production line can be customized by the packaged products.
TECHNICAL PARAMETER
Model | DZL-270 |
Max. Blister size（mm） | 260×120 |
Mini. Carton size（mm） | 50×20×14 |
Mini. leaflet size（mm） | 100×100 |
Voltage | Customized |
Weight（Kg） | 3400 |
Output capacity（boxes/min） | 30-80 |
Max. Carton size（mm） | 200×80×50 |
Max. leaflet size（mm） | 260×190 |
Max. foil width（mm） | 270 |
Power（kw） | 9 |
Dimension（mm） | 9300×1380×1800 |
APPLICATION
This machine is designed for automatic medicine packaging production line. It can automatically blistering, flow packaging, cartoning, coding, ejection, etc. The machine is controlled by PLC and touch screen, which increased the working efficiency and stability. The production line can be customized by the packaged products.
TECHNICAL PARAMETER
Model | DZL-270 |
Max. Blister size（mm） | 260×120 |
Mini. Carton size（mm） | 50×20×14 |
Mini. leaflet size（mm） | 100×100 |
Voltage | Customized |
Weight（Kg） | 3400 |
Output capacity（boxes/min） | 30-80 |
Max. Carton size（mm） | 200×80×50 |
Max. leaflet size（mm） | 260×190 |
Max. foil width（mm） | 270 |
Power（kw） | 9 |
Dimension（mm） | 9300×1380×1800 |
