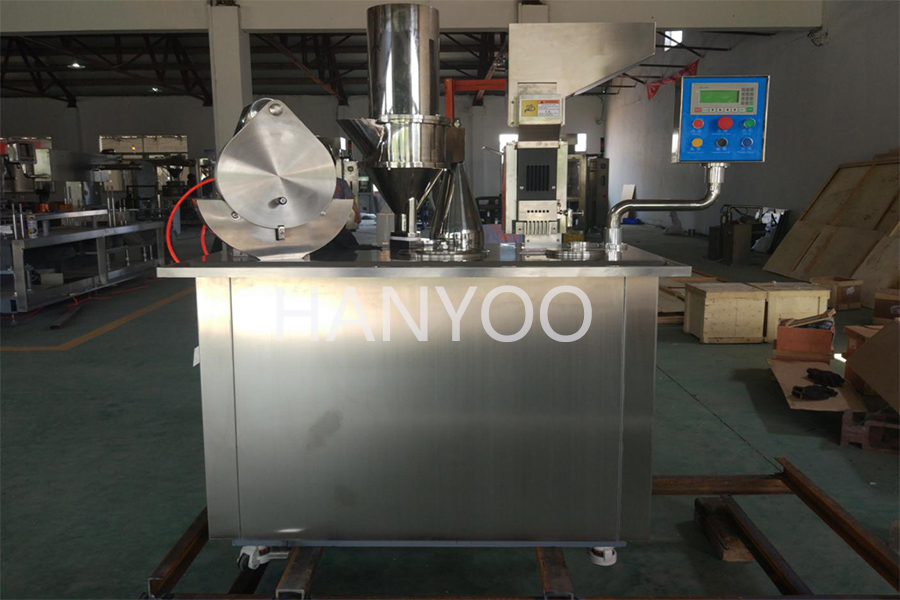

The powder filling mechanism of semi-automatic capsule filling machine

The powder filling mechanism of semi-automatic capsule filling machine

The function of this mechanism is to automatically load the material into the empty capsule in the capsule mold in order, and the hopper is equipped with a stepless speed regulating motor (the meter shows the speed), which drives the propeller to force the material into the empty capsule. The lower rotary table drives the mold to rotate, and the lower rotary table also drives the stepless speed regulating motor to operate, so that the mold runs for a week under the feed nozzle, which is controlled by photoelectric counting (the counter is set for 30 times). When the filling key is pressed to start, the hopper is pushed to the mold by the cylinder. The rotary table motor and the hopper motor will start automatically when the hopper is in place. When the mold rotates once, it will stop automatically and the cylinder will return to its original position automatically.

If the hopper advance and advance speed is too fast or too slow can adjust the two one-way throttle valves at the solenoid valve interface, so that the speed is appropriate. In addition, if the motor starts before the hopper is in place, or does not start after it is in place, the filling delay time can be adjusted to start it within 1 second after it is in place. The speed of the hopper motor and the speed of the rotary motor can be adjusted depending on the amount of filling and the good fluidity of the material. Powder filling and metering adjustment: The filling dose can be adjusted by speeding up or slowing down the speed of the feeding motor and the powder rotary table on the touch screen. If the dosage is needed to increase, the speed of the feeding rotary plate can be reduced in real time, and the speed of the feeding motor can be increased to adjust to the ideal filling dose, and the speed value of the current feeding motor and the feeding rotary plate can be recorded for future use.
