Adjust the dispensing tray and sealing ring of the capsule filling machine

Adjust the dispensing tray and sealing ring of the capsule filling machine

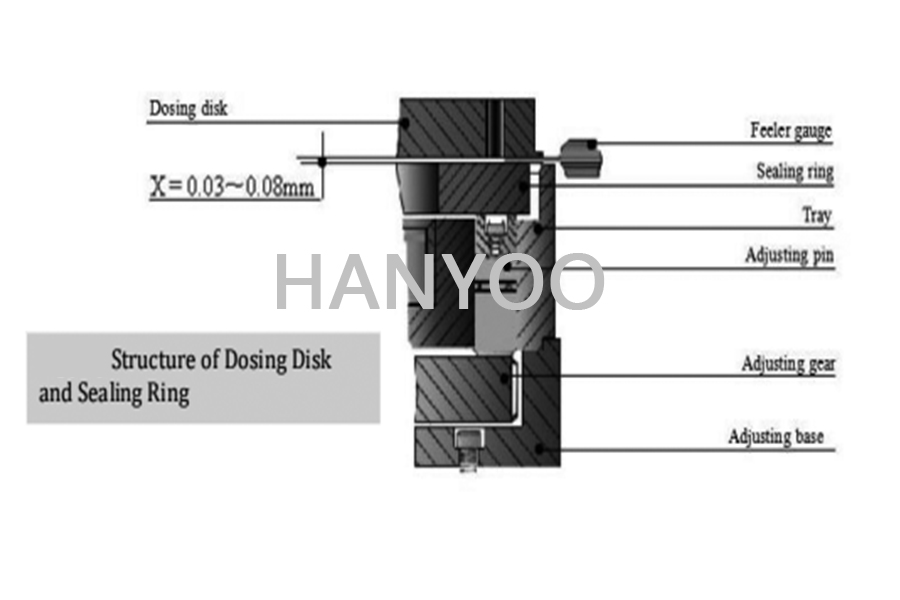

The clearance between dosing disk and sealing ring should be preferably 0.03~0.08 mm. With larger particles, the clearance may be adjusted wider. Too narrow clearance may increase the resistance between dosing disk and sealing ring. Should too much powder leakage or resistance occur in the operation, adjustment of the clearance shall be made. Toadjust the clearance, draw out baffle and loosen fastening screw on adjusting base, first rotate adjusting knob counterclockwise to lower sealing ring, then rotate adjusting knob clockwise to raise sealing ring. After deciding the clearance between sealing ring and dosing disk with feeler gauge, lock the fastening screw. If sealing ring is adjusted too high, just rotate the adjusting knob counterclockwise to lower sealing ring and then rotate clockwise to raise it. Adjust from high to low shall not be allowed. The knob has a scale. Whenever you rotate one degree, sealing ring will rise by 0.015mm. After adjusting the clearance between dosing disk and sealing ring, install baffle on thetray.
