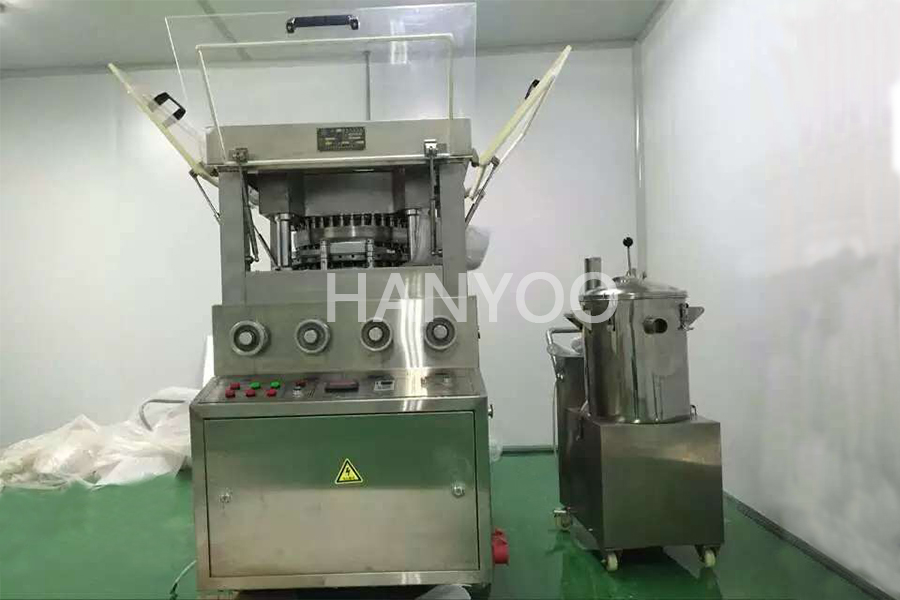

Lubrication for components of rotary tablet press

Lubrication for components of rotary tablet press

1. The general lubrication of the machine parts are equipped with oil cups and nozzles on the surface of the machine parts. Butter and oil can be filled respectively according to the type of oil cups.

2. The glass oil cup on the top cover is lubricated with the turntable and bearings, which are in operation at a rate of 2-4 drops per minute.

3. the screw cap oil cup on the worm is to lubricate the worm gear, in operation according to the actual lubrication and.

4. Both ends of the drive shaft are equipped with rolling bearings, and the oil nozzle is installed outside the shaft shell. It can be refueled once every two weeks and pressed into the oil gun.

5. The tail of the punch rod and the curve rail are lubricated with butter. It should not be too much to prevent the oil from infiltrating into the powder and affecting the quality of the tablet.

6.when refueling should pay attention not to make the oil spill out of the cup, not to flow to the machine around and on the ground, because the oil is easy to make the material stain affect the quality of the tablet.
