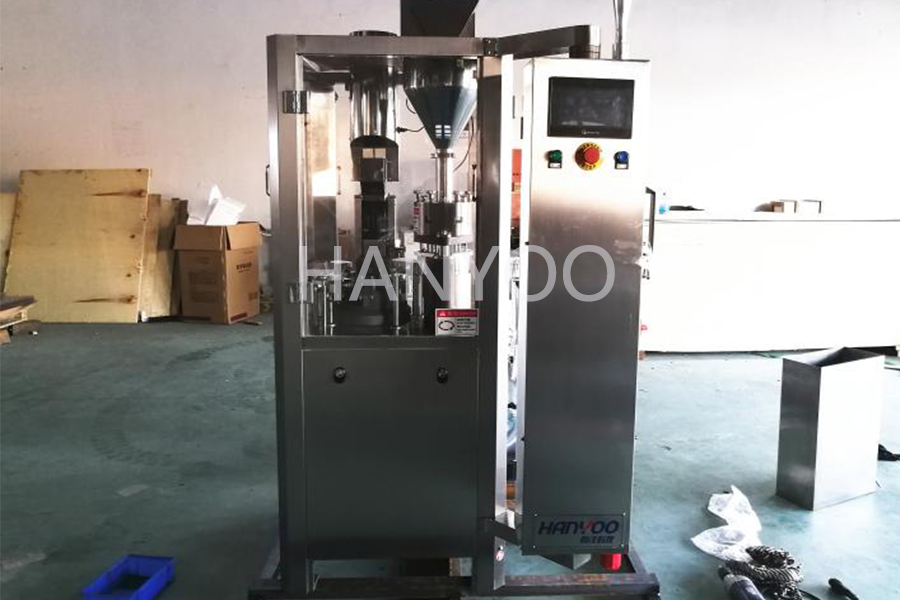

Replacement of the dosing plate and the filling rod of the automatic capsule filling machine

1. Loosen the fastening screw to raise the powder hopper with spring force;

2. Use a vacuum cleaner to remove the remaining powder in the medicine pool ring;

3. Rotate the main motor with the handle to make the punch seat plate in the highest position;

4. Loosen and remove the cap nut, turn the knob clockwise to raise the pressure plate and the filling holder and lift it off;

5. Remove the small pressure plate screw with the long hole under the holder, and remove the filling rod. After replacing the filling rod, press on the small pressure plate and tighten the screws for installation;

6. First loosen the screws on the barrier plate and pull out the barrier plate upwards, unscrew the two fastening screws at both ends of the powder ring cover, rotate the main motor with the handle correspondingly, loosen the four fastening screws that fix the powder ring, and connect the powder ring to the cover. Lift the plate slowly away from the dose plate and take it out from the side, without removing the punch seat plate;

7. Use a special wrench to remove the three screws that fasten the dose plate, and then remove the dose plate;

8. After the powder in the holder is cleaned up, install the dose plate of another specification to be replaced, and do not tighten the three fastening screws after installation;

9. Rotate the main motor with the handle to lower the plunger seat plate to the lowest position. Insert the two dose plate correction rods into the holes at different positions of the plunger seat plate. At this time, turn the dose plate carefully and appropriately. , So that the correction rod is smoothly inserted into the hole. Then carefully tighten the three screws alternately. If the calibration rod cannot be inserted into the dose plate hole smoothly after tightening, it must be re-adjusted until it is inserted smoothly;

10. Put the powder ring and cover into place from the side together, turn the machine with the handle, and tighten the four screws that fix the powder ring. If the replacement dose plate is thicker than the original dose plate, adjust the powder divider first;

11. Tighten the cover fixing screws, and then carefully adjust the height of the powder divider so that the gap between the powder divider and the dose plate is between 0.05 and 0.1mm, and then tighten the lock nut;

12. Install the filling rod, holder and pressure plate in the original position, and tighten the cap nut.
