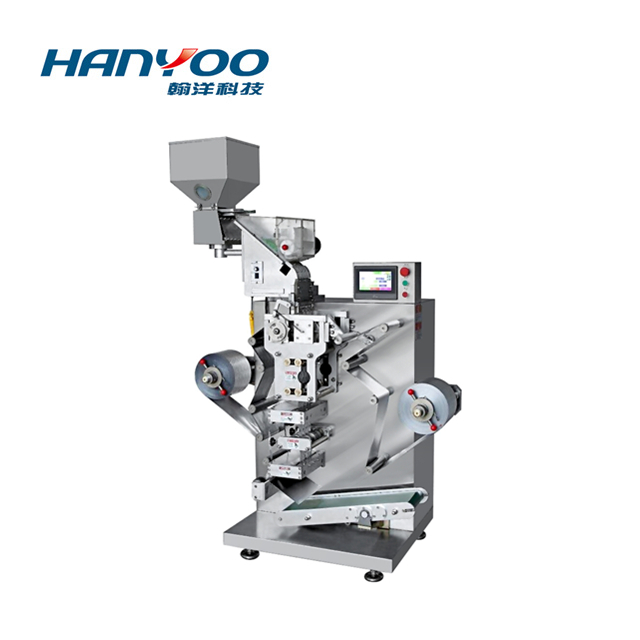

RLB-160/260/350
HANYOO
MACHINE FEATURES
● The whole machine adopts PLC touch screen control system. The punching plates amount can be freely set and adjusted on the touch screen. There is no need to worry about the frequent replacement of various gears and cams due to the replacement of packaging specifications and varieties.
● The temperature control of the heat-sealing roller die adopts the imported temperature controller with PID control, and the advanced PT100 roller surface temperature detector assembled by the imported parts at the same time, ensuring the surface temperature of the heat-sealing roller die is stable and reliable, directly improving The sealing performance of the heat-sealed drug version.
● The main engine adopts the inverter stepless speed regulation, the equipment runs stably and reliably, the transmission structure is simple, and the maintenance is convenient.
● This machine is also equipped with solid-state die wheel coding, graphic and text version, optical fiber detection, lack of grain and other optional functions to meet the various needs of different customers.
TECHNICAL PARAMETER
Model | RLB-160 | RLB-260 | RLB-350 |
Output capacity(tablet/min) | ≤800 | ≤1100 | ≤1500 |
Cutting frequency(times/min) | 40-80 | ||
Air consumption(m³/min) | 0.45MPa ≥0.2 | ||
Max. film width(mm) | 160 | 250 | 350 |
Roll diameter(mm) | 300 | 300 | 300 |
Power(kw) | 2.75KW | 3.75KW | 4.0KW |
Weight(Kg) | 900 | 1100 | 1200 |
Machine size(mm) | 1300×750×1700 | 1600×850×1900 | 1600×950×1900 |
MACHINE FEATURES
● The whole machine adopts PLC touch screen control system. The punching plates amount can be freely set and adjusted on the touch screen. There is no need to worry about the frequent replacement of various gears and cams due to the replacement of packaging specifications and varieties.
● The temperature control of the heat-sealing roller die adopts the imported temperature controller with PID control, and the advanced PT100 roller surface temperature detector assembled by the imported parts at the same time, ensuring the surface temperature of the heat-sealing roller die is stable and reliable, directly improving The sealing performance of the heat-sealed drug version.
● The main engine adopts the inverter stepless speed regulation, the equipment runs stably and reliably, the transmission structure is simple, and the maintenance is convenient.
● This machine is also equipped with solid-state die wheel coding, graphic and text version, optical fiber detection, lack of grain and other optional functions to meet the various needs of different customers.
TECHNICAL PARAMETER
Model | RLB-160 | RLB-260 | RLB-350 |
Output capacity(tablet/min) | ≤800 | ≤1100 | ≤1500 |
Cutting frequency(times/min) | 40-80 | ||
Air consumption(m³/min) | 0.45MPa ≥0.2 | ||
Max. film width(mm) | 160 | 250 | 350 |
Roll diameter(mm) | 300 | 300 | 300 |
Power(kw) | 2.75KW | 3.75KW | 4.0KW |
Weight(Kg) | 900 | 1100 | 1200 |
Machine size(mm) | 1300×750×1700 | 1600×850×1900 | 1600×950×1900 |
